Sand washing machine

XSD Sand Washing Machines are a kind of water washing style equipment to be matched with the sand maker and can reduce the dust and stone powder which mixes with the final sand, Its novel seal structure, the reliable transmission device, guarantees the elution water effect, is one kind of highly effective sand washer that coordinates with sand making machine.Sand washing machine is widely used for cleaning materials in the following industries: quarry, minerals, building materials, transportation, chemical industry, water conservation and cement mixture station and so on.
  • sandwash

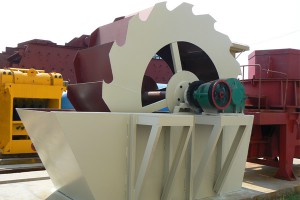

    wheel type sand washing machine

  • spiral sand washing machine

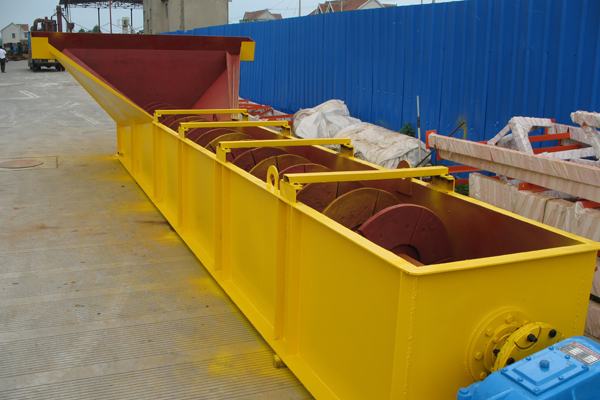

    spiral sand washing machine

Reasonable structure.
Large capacity.Low consumption.
Little loss of the sand during the washing process.
Low failure rate.

Two kinds of the sand washing machine: spiral sand washing machine and wheel type sand washing machine.


    • Sand Washing Machine Working Principle :

    The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used. Finally,the sand and stone goes to the out launder from the rotary impellor to finish the washing task.

    The Specification of Sand Washing Machine

    Model XSD2610 XSD2816 XSD3016 XSD3620
    Spec. of Impeller(mm) φ2600×1000 φ2800×1600 φ3000×1600 φ3600×2000
    Impeller Speed(r/min) 1.178 1.177 1.179 1.179
    Capacity(t/h) 20-50 30-60 50-120 60-150
    Input Size(mm) ≤10 ≤10 ≤10 ≤10
    Motor Power(kw) 7.5 11 15 18.5
    Decelerator Model ZQ50-50-I-Z ZQ65-50-I-Z ZQ65-50-I-Z ZQ65-50-I-Z
    Overall Dimension(mm) (L×W×H) 3255x1982x2690 3540x3000x2880 3845x3000x3080 4500x3206x3480
